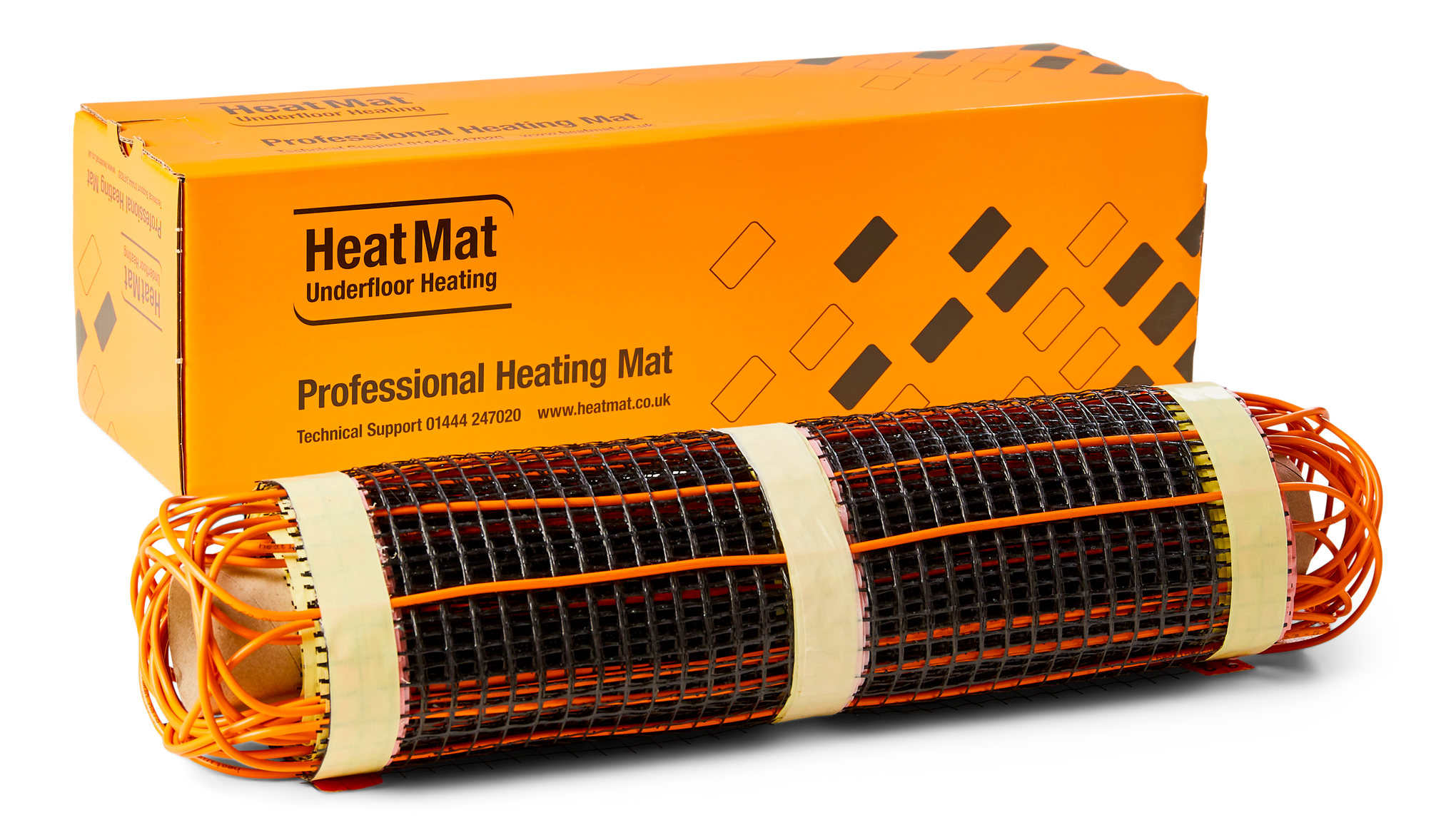

The 160W/m² mat is Heat Mat's universal, ultra-thin underfloor heating mat, designed to provide floor warming in any room and full sole-source heating in well insulated areas. This 3.9m² mat delivers 624W and comes pre-spaced on a 0.5m wide self-adhesive mesh for quick, even installation.

It is ideal beneath tile and stone, and can be used under almost any floor covering when first covered with a 12mm flexible levelling compound. The mat reacts quickly and is simple to run with Heat Mat's NGTouch thermostat, while the integrated earth shield allows safe installation in bathrooms and wet rooms. The simple cut-and-turn design lets the mat be turned back on itself to fit the room. Hand made in Denmark and supplied with a Lifetime Warranty.

Key features

  • 160W/m² output on a 0.5m wide cut-and-turn mesh
  • 3.9m² coverage with 624W total output
  • Versatile 160W/m² output for floor warming or sole-source heating in well-insulated rooms
  • Suitable beneath virtually any floor covering when covered with a 12mm levelling compound
  • Ultra-thin fluoropolymer-insulated cable for minimum build height
  • Litzer heating wires, Kevlar anti-stretch protection and 100% aluminium earth shield
  • Integrated earth shield allows safe installation in bathrooms and wet areas
  • 4m double-insulated coldtail lead
  • BEAB and Semko approved, supplied with a Lifetime Warranty

Specification

  • Product code: PKM-160-0390
  • Size: 3.9m²
  • Wattage: 624W
  • Resistance: 92 Ω
  • Supply voltage: 230V ±10
  • Power output: 160W/m²
  • IP rating: IPX7
  • Coldtail lead: 4m, double insulated

Download Product PDF
