Description

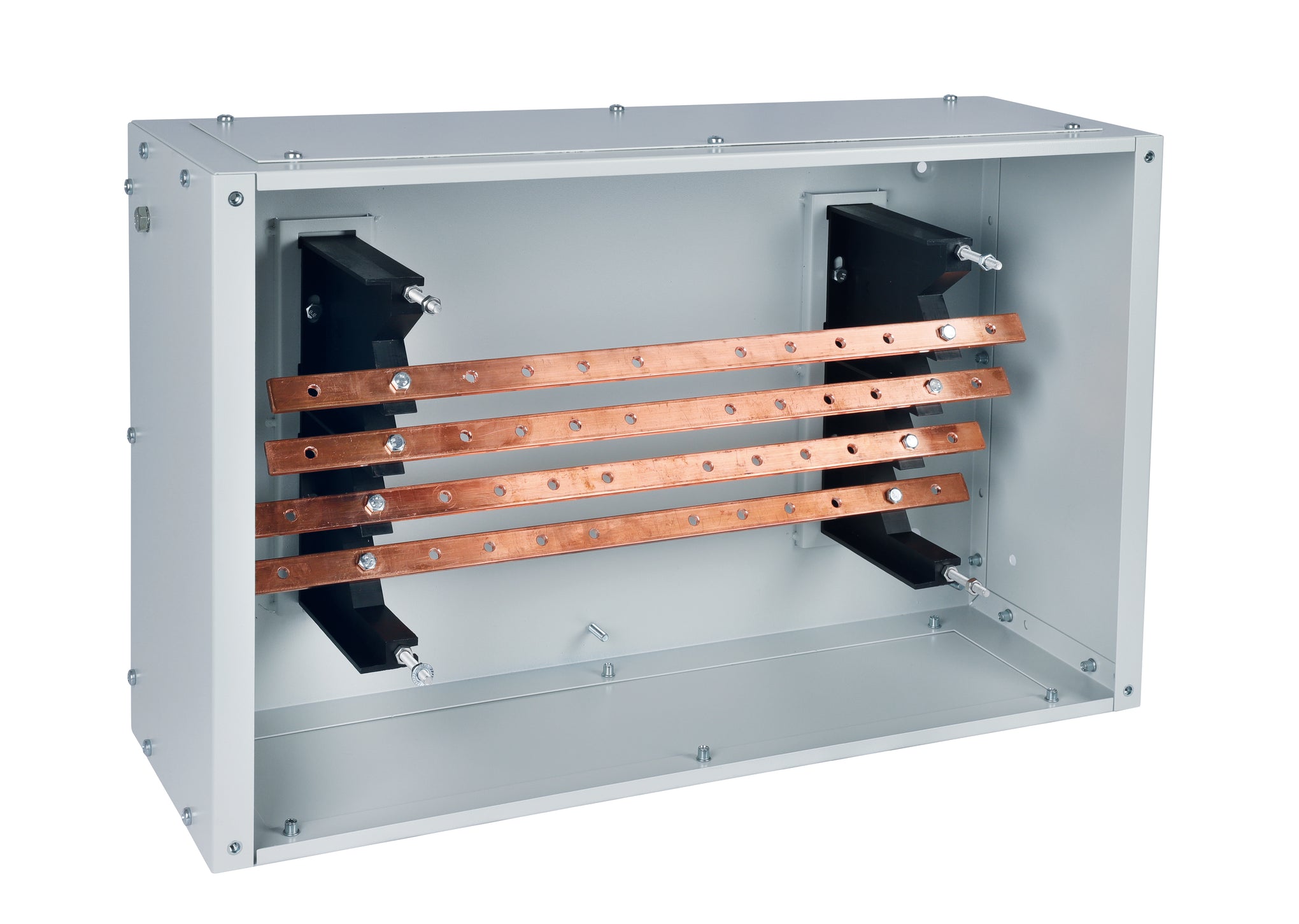

The Niglon BBC2054 is a 200A four-pole busbar chamber measuring 380 x 1500 x 200mm, rated 415V. It takes an incoming supply and provides a common busbar tapping point for distributing power to multiple switch-isolators or switchfuses.
Constructed from mild steel to IP41, with single copper busbars drilled M6.5 at 50mm spacing for cable-lug connection, removable key-hole-slot side panels and blank gland plates top and bottom. Intended for use with the Niglon range of switch-isolators and switchfuses.
Key features
- 200A four-pole busbar chamber
- Single copper busbars with M6.5 lug holes at 50mm spacing
- Mild steel enclosure, IP41
- Removable side panels; blank gland plates top and bottom
- Cable connection kits available separately (BBCKIT range)
- For use with Niglon switch-isolators and switchfuses
Specification
- Rated current: 200A
- Poles: 4
- Rated voltage: 415V
- Dimensions (HxWxD): 380 x 1500 x 200mm
- Material: Mild steel
- Ingress protection: IP41
- Busbar connection: M6.5 holes at 50mm spacing (6mm lug)
- Standard: BS EN 61439-3
