Description

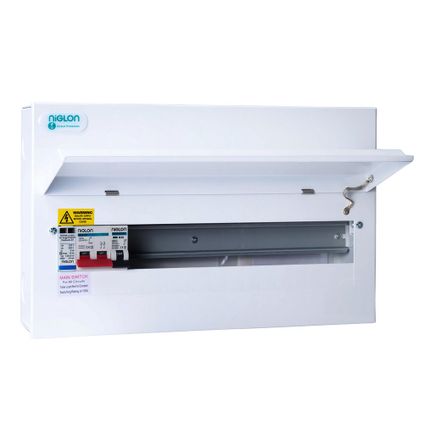

The Niglon M3CU18SP is a 14-way main-switch consumer unit with a 100A double-pole isolator incomer and an integral surge protection device (SPD). It provides a compact metal board for domestic and light-commercial installations, ready to populate while delivering built-in transient overvoltage protection.
The integral Type 2 (or 3) SPD is rated 15kA Imax to BS EN 61643-11. Housed in a powder-coated steel enclosure (RAL 9010) rated IP20 / IK05, with a 35mm² incoming cable capacity; the 100A isolator is manufactured to BS EN 60947-3 and the board to BS 7671:2018 and BS EN 61439-3.
Key features
- 14-way main-switch consumer unit
- 100A double-pole isolator incomer
- Integral Type 2 (or 3) SPD, 15kA Imax
- Powder-coated steel enclosure (RAL 9010), IP20 / IK05
- Isolator to BS EN 60947-3
- Board to BS 7671:2018 and BS EN 61439-3
Specification
- Ways: 14
- Incomer: 100A double-pole isolator (BS EN 60947-3)
- SPD: Type 2/3, 15kA Imax (BS EN 61643-11)
- Voltage: 230V AC
- Rated current: 100A
- Ingress / impact: IP20 / IK05
- Finish: Steel, RAL 9010
- Dimensions (WxHxD): 380 x 230 x 110mm
- Standards: BS 7671:2018, BS EN 61439-3
