Description

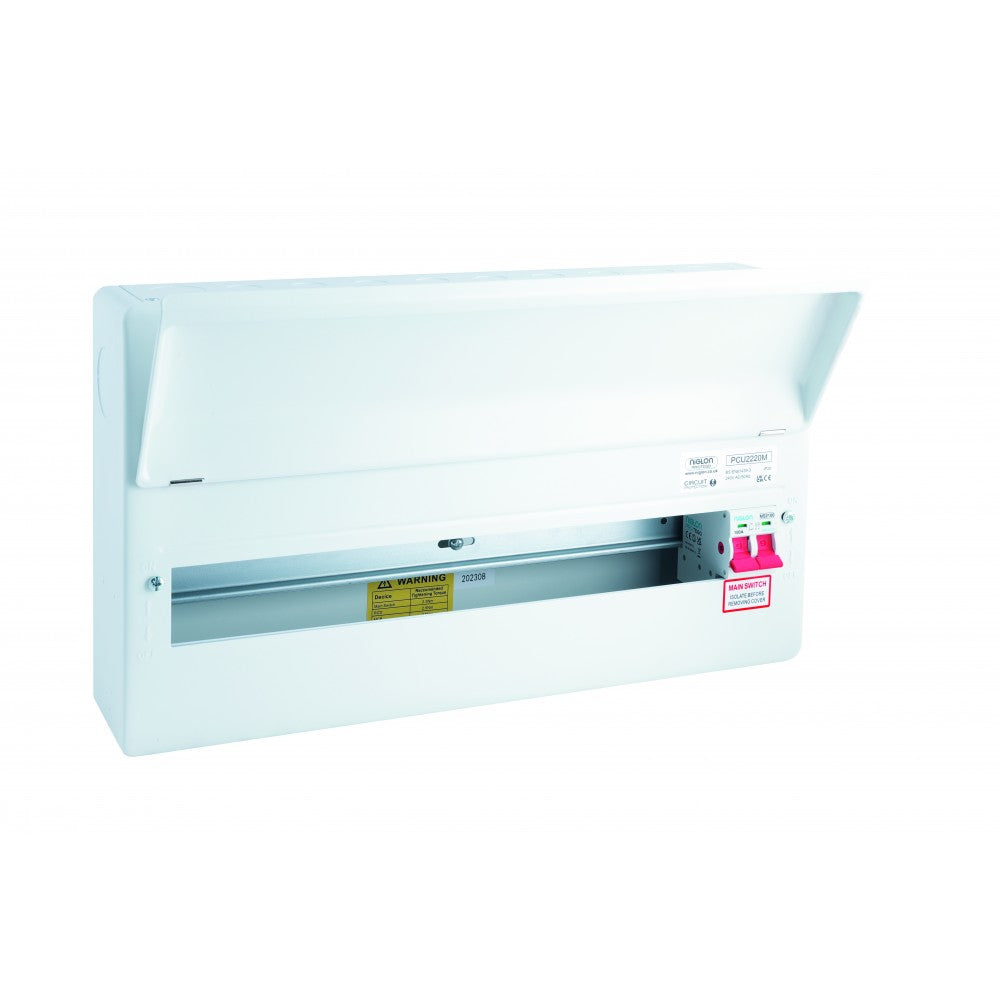

The Niglon PCU2220M is a 20-way main-switch consumer unit fitted with a 100A double-pole isolator incomer. It provides a robust metal board for domestic, commercial and industrial final circuits, ready to populate with the required protective devices.
Housed in a powder-coated steel enclosure rated IP20 / IK05, with a right-hand incomer and 35mm² main-switch terminal capacity. The 100A isolator is manufactured to BS EN 60947-3 and the board to BS 7671:2018 and BS EN 61439-3.
Key features
- 20-way main-switch consumer unit
- 100A double-pole isolator incomer
- Powder-coated steel enclosure
- IP20 / IK05
- Isolator to BS EN 60947-3; board to BS 7671:2018 and BS EN 61439-3
Specification
- Ways: 20
- Incomer: 100A double-pole isolator (BS EN 60947-3)
- Voltage: 230V AC
- Rated current: 100A
- Ingress / impact: IP20 / IK05
- Finish: Powder-coated steel
- Standards: BS 7671:2018, BS EN 61439-3
