Description

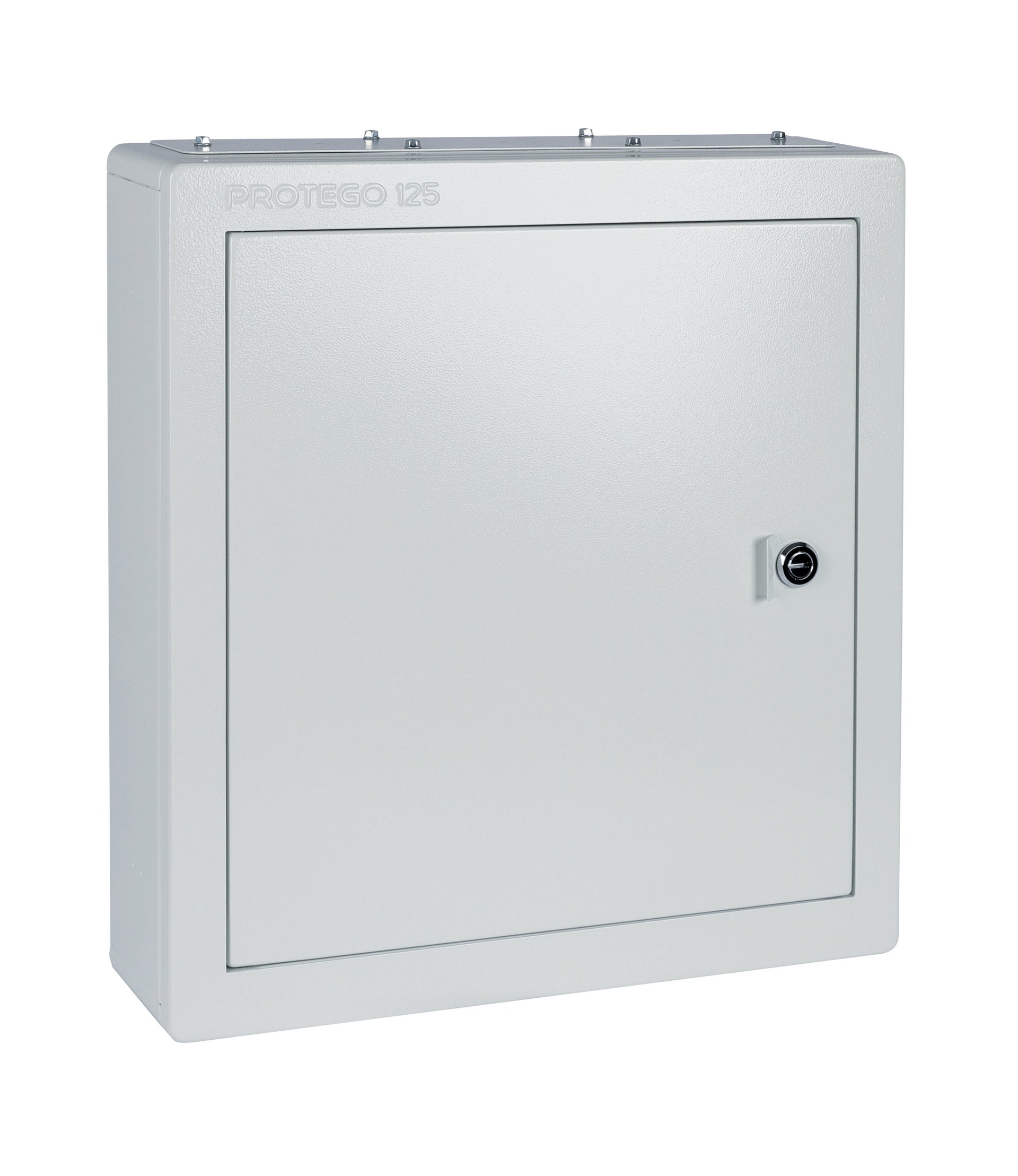

The Niglon PTB04S is a 4-way three-phase (TP&N) B-type distribution board from the Protego 125 range, fitted with an integral 125A four-pole mains switch. It distributes and protects up to 4 final circuits in commercial and industrial installations.
Housed in an IP2X light-grey epoxy powder-coated steel enclosure with a reversible door, removable gland plates top and bottom, and a fully shrouded integral neutral bar. Manufactured to BS EN 61439-3, with the 125A incomer to BS EN 60947-3.
Key features
- 4-way three-phase (TP&N) B-type distribution board
- Integral 125A four-pole mains switch
- 230/400V AC, IP2X
- Light-grey epoxy powder-coated steel
- Reversible door; removable top & bottom gland plates
- Fully shrouded integral neutral bar; wall-mounting fixings supplied
- Manufactured to BS EN 61439-3 (incomer BS EN 60947-3)
Specification
- Ways: 4
- Incomer: 125A four-pole switch (BS EN 60947-3)
- Voltage rating: 230/400V AC
- Current rating: 125A
- Ingress protection: IP2X
- Finish: Light-grey epoxy powder coat
- Standard: BS EN 61439-3
