Description

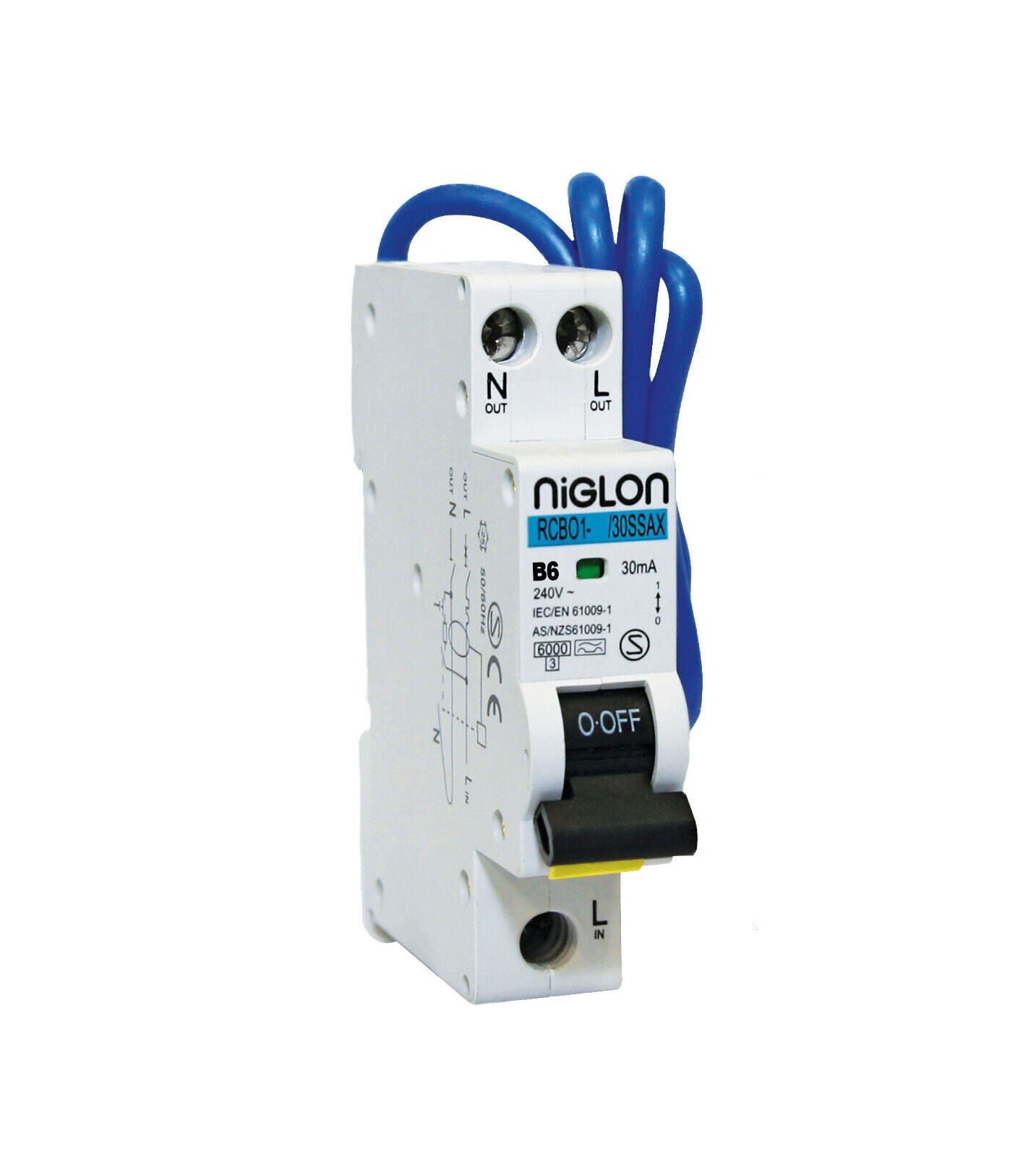

The Niglon RCBO1-06/30SSAX is a 6A single-pole Type B RCBO from Niglon's Protego domestic circuit protection range, combining MCB and RCD protection in a single space-saving module.
At just 18mm wide it switches both line and neutral, giving an individual final circuit its own overcurrent and earth-fault protection — a simple way to stop one fault tripping the whole board.
Key features
- 6A rated current with a Type B tripping curve for general-purpose final circuits
- 30mA Type A RCD protection, detecting AC and pulsating DC residual currents
- 6kA breaking capacity
- Space-saving single-module design
Specification
- Product code: RCBO1-06/30SSAX
- Rated voltage: 240V
- Rated current: 6A
- Tripping curve: Type B
- RCD type: Type A
- Rated residual trip current: 30mA
- Breaking capacity: 6kA
- Switching: switched line & neutral
- Cable capacity: 25mm² line in, 10mm² load/neutral out
- Dimensions (W×H): 18 × 83mm
- Standards: BS EN 61009-1
