Description

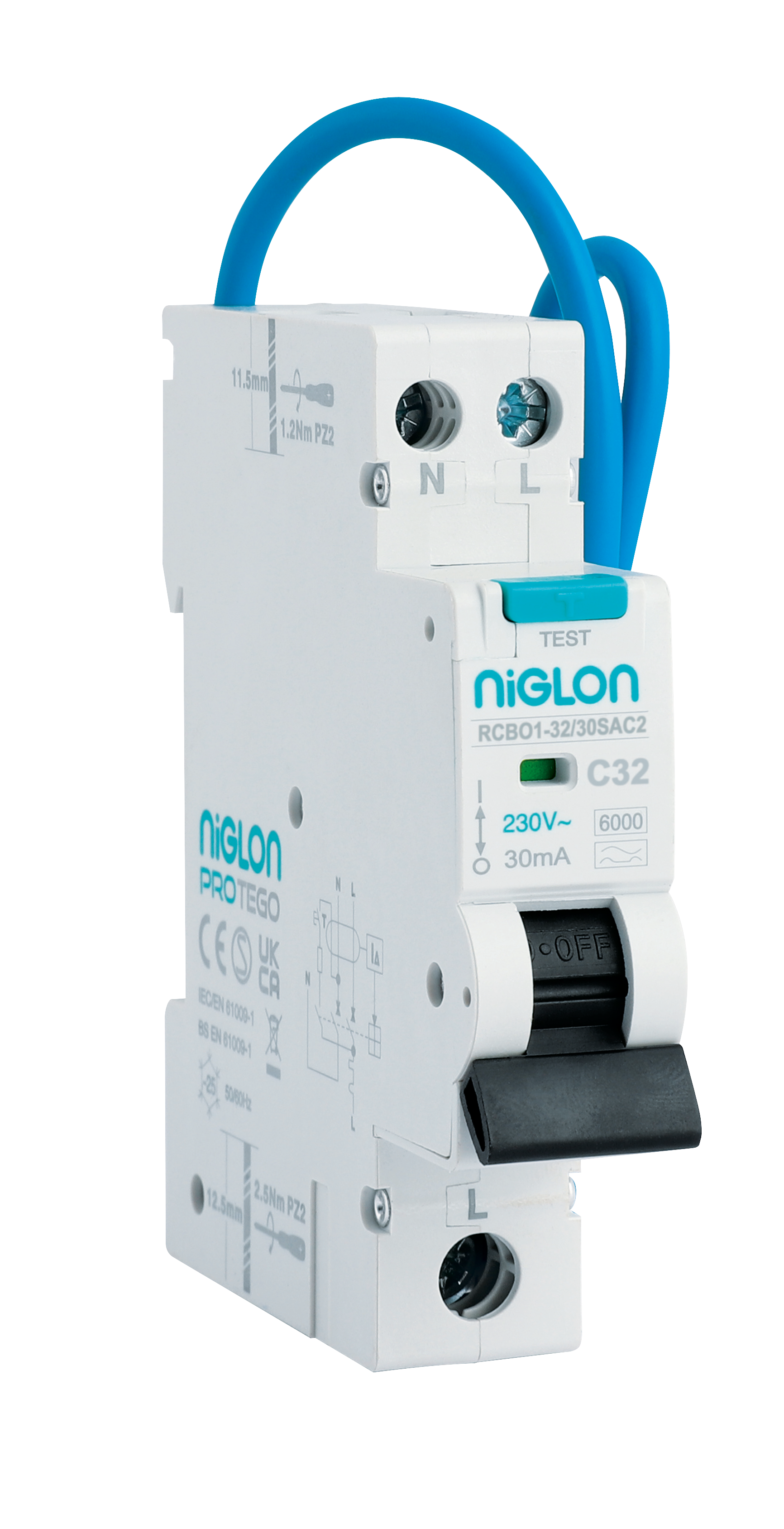

The Niglon RCBO1-32/30SAC2 is a 32A single-pole Type C RCBO that combines MCB and RCD protection in a single space-saving module.
The Type C curve handles the higher inrush of inductive and fluorescent lighting loads without nuisance tripping, while the bi-directional design allows the supply to be connected at either the top or bottom terminals for flexible wiring in populated consumer units and distribution boards.
Key features
- 32A rated current with a Type C tripping curve for circuits with moderate inrush
- 30mA Type A RCD protection, detecting AC and pulsating DC residual currents
- 6kA breaking capacity
- Bi-directional — supply can be connected at the top or bottom terminals
- Space-saving single-module design
Specification
- Product code: RCBO1-32/30SAC2
- Rated voltage: 240V
- Rated current: 32A
- Tripping curve: Type C
- RCD type: Type A
- Rated residual trip current: 30mA
- Breaking capacity: 6kA
- Switching: switched line & neutral
- Bi-directional: Yes
- Cable capacity: Line 25mm², Line/Neutral 10mm²
- Torque rating: Line 2.5Nm, Line/Neutral 1.2Nm
- Standards: BS EN 61009-1, IEC 61009-2-2
