Description

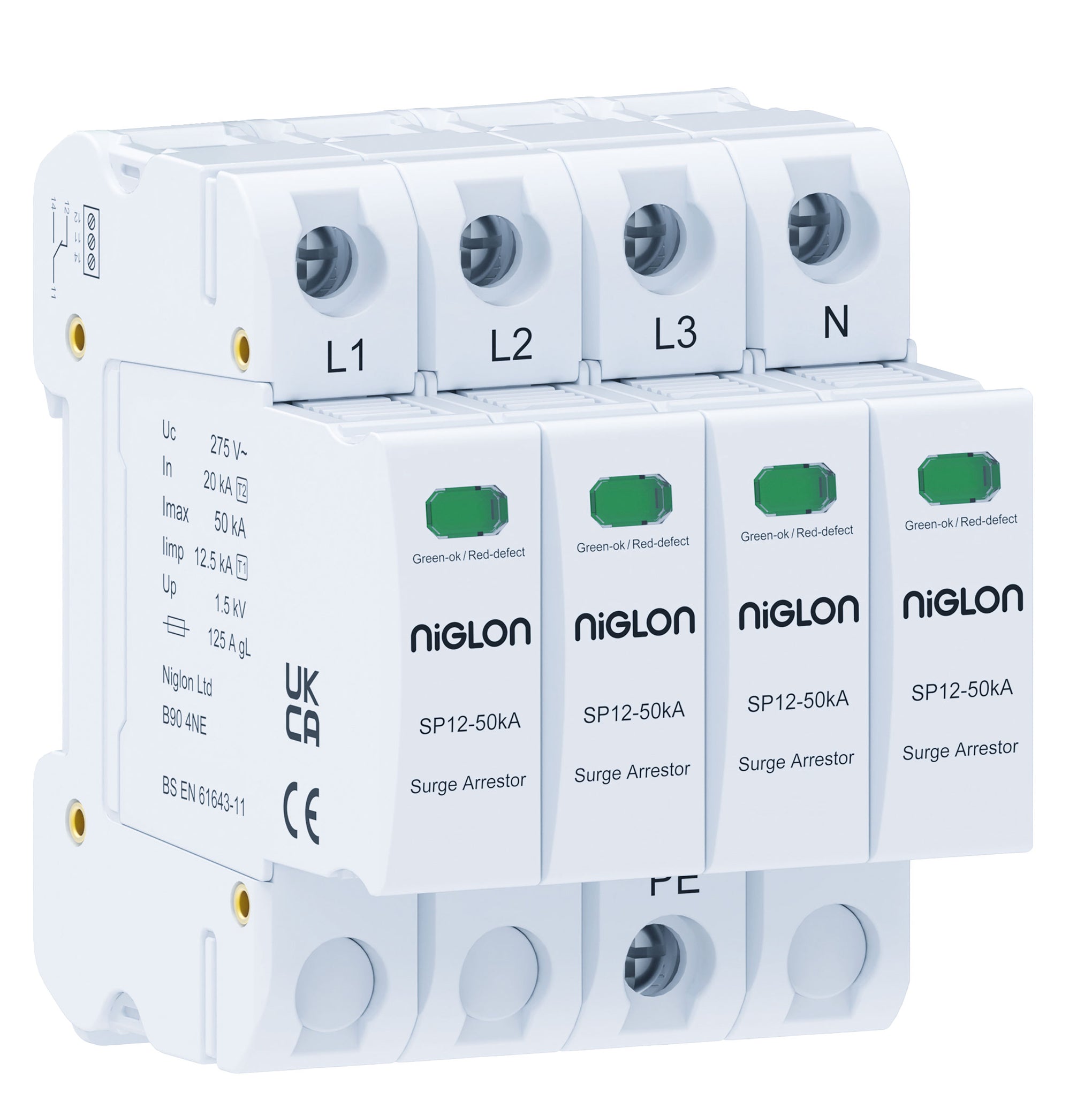

The Niglon SP12S-3PN/50KA is a Type 1+2 combined lightning and surge arrester for 3P+N installations, with a maximum discharge current (Imax) of 50kA. It protects distribution boards against both direct lightning energy and transient overvoltages.
Fitted with a remote signal contact and suited to incoming distribution panels where the risk of lightning strikes is high, particularly buildings with a lightning protection system. It should be accompanied by downstream Type 2 protection. Uc 275V, manufactured to BS EN 61643-11.
Key features
- Type 1+2 combined lightning and surge arrester (3P+N)
- Maximum discharge current (Imax) 50kA
- Maximum continuous operating voltage (Uc) 275V
- Remote signal contact
- DIN-rail mounting
- Manufactured to BS EN 61643-11
Specification
- Type: Type 1+2 SPD
- Poles: 3P+N
- Imax (8/20µs): 50kA
- Uc: 275V
- Remote signal: Yes
- Recommended backup: 63A Type C MCB
- Standard: BS EN 61643-11
