Description

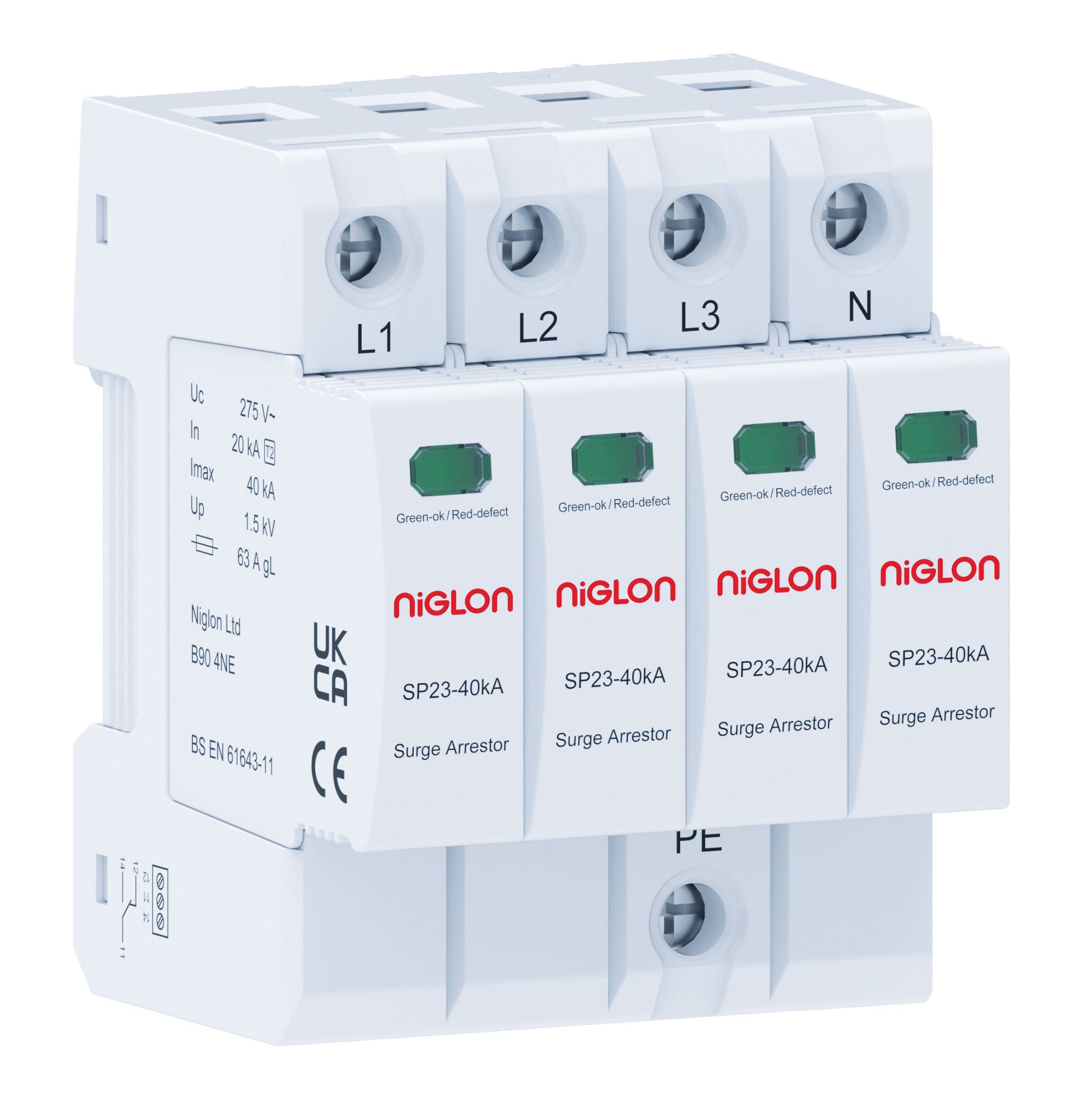

The Niglon SP23S-3PN/40KA is a Type 2 surge protection device for 3P+N installations, with a maximum discharge current (Imax) of 40kA. It protects distribution boards and connected equipment against transient overvoltages from switching and indirect lightning.
Built around high-energy MOVs with a remote signal contact and a visual fault indicator (green = OK, red = replace). Uc 275V, nominal discharge current (In) 20kA, voltage protection level (Up) 1.5kV. Manufactured to BS EN 61643-11.
Key features
- Type 2 surge protection device (3P+N)
- Maximum discharge current (Imax) 40kA
- Nominal discharge current (In) 20kA
- Visual fault indicator and remote signal contact
- Uc 275V, Up 1.5kV
- Manufactured to BS EN 61643-11
Specification
- Type: Type 2 SPD
- Poles: 3P+N
- In / Imax (8/20µs): 20kA / 40kA
- Uc: 275V
- Up: 1.5kV
- Fault indication: Green = OK, Red = replace; remote signal
- Standard: BS EN 61643-11
