Description

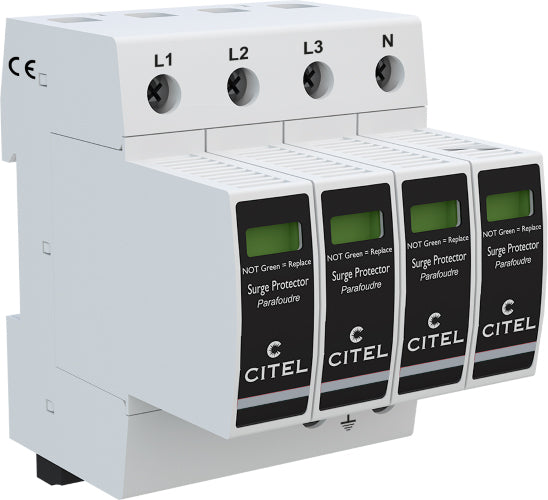

The DAC1-13VG is an extreme duty pluggable Type 1+2+3 SPD designed to protect AC powerline at the main switchboard of an installation equipped with lightning rod. Equipped with exclusive CITEL’s VG technology, the range achieves a high protection level, guaranteeing a maximum protection efficiency, an absence of follow and leakage currents, a simplification of use (no additional lightning protector required) and a maximum lifetime. The DAC1-13VG surge protectors are especially compact and available in multipolar versions to protect single or 3-phase AC networks, which makes them the best surge protection solution for Type 1 requirements.
- Type 1+2+3 AC Surge Protector
- Earth type IT
- Max discharge current Imax 50kA 8/20µs
- Impulse current by pole limp 12.5kA 10/350µs
- 275 Max operating voltage
- Visual status indicator & Remote signal
- VG-Gas tube spark gap + MOV
- Zero residual leakage & Follow on current
- 18th Edition & IEC/EN61643-11 compliant
- EAC, Kema, Keur, UKCA/CE Approved
