Description

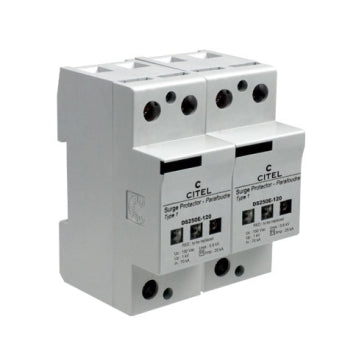

The products of the DS250VG range are an extreme duty Type 1+2+3 AC surge protector device designed to protect at the entrance of the electrical installation. This SPD is particularly useful in a high lightning density area where the risk of heavy surge current or even direct strike is high (eg: buildings equipped with lightning rods). The `Spark gap + Varistor` technology allows a very low level of protection and an absence of following current. The DS250VG is mounted on a DIN Rail and has a double connection for the active conductor, which allows an optimized connection to the network.
- Type 1+2+3 AC Surge Protector
- Earth type TN
- Max discharge current Imax 70kA 8/20µs
- Impulse current by pole limp 25kA 10/350µs
- 230/400VAC Network voltage
- Visual status indicator
- VG-Gas tube spark gap + MOV
- Zero residual leakage & Follow on current
- 18th Edition Complaint
- IEC/EN61643-11 compliant, EAC, UKCA / CE Approved
