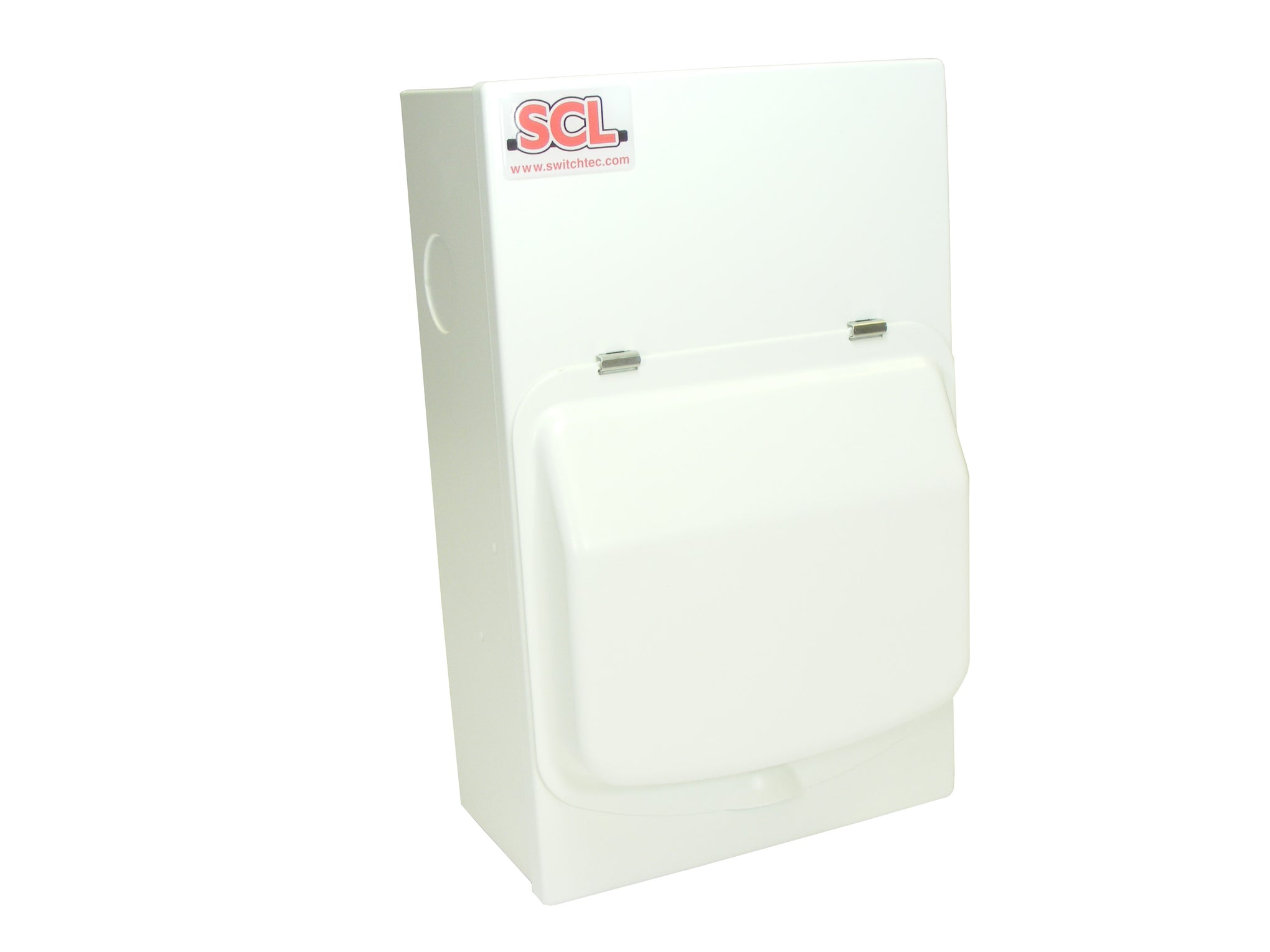

The SCL Surge Shield from Switchtec offers a complete 18th Edition compliant surge protection solution. Pre-Wired and designed for new installations or upgrades to existing TT-TNS networks. The SCL Surge Shield provides surge protection up to a maximum discharge current (Imax) of 50kA, Iimp 12.5kA. Developed in partnership with Surge Protection Device manufacturer; Citel, France. A world leading SPD manufacturer since 1944, the SCL Surge Shield offers a 3 Phase +N Type 1 surge protection which complies with IEC 61643-11 mounted alongside a 3P+N fuse carrier including 100kA back up fuses.
- 18th Edition compliant
- IP40 Metal Enclosure
- Type 1 SPD , Earth type TT/TN
- Max discharge current Imax 50kA 8/20µs
- Impulse current by pole limp 12.5kA 10/350µs
- 230/400VAC Network voltage
- Built in internal disconnection
- Fuse breaking capacity 100,000A
- Visual status indicators & Remote signal
- EN 61643-11, UL1449 ed. 4 complaint, KemaKeur, EAC, UKCA & CE Approved
